Transmitter & Receiver

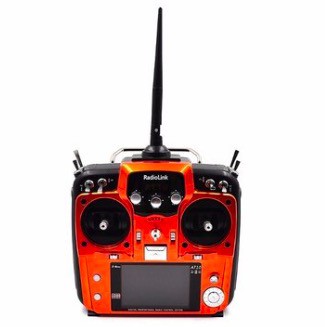

Radiolink AT10II 2.4G 12CH Transmitter

Radiolink AT10II AT10 II 2.4G 12CH Transmitter With R12DS Receiver Orange

Radiolink AT10II Transmitter Features

  1. Upgraded version of Radiolink AT10,with DSSS and FHSS dual signal
  2. Support English & Chinese Menu
  3. Higher accuracy of anti-interference and transmitter control bars than AT10.
  4. Multiple function remote control system
  5. 3.5 inch colorful screen 320×480 resolution,clear display menu and graphs.
  6. Including helicopter,airplane and slider three type flying machine and five models,cover almost every popular model,you can fly any model by this radio.
  7. Fast response time only 3ms to the operation,faster then the other transmitter 20ms,even ten channels also let you feel it.
  8. Receiver integrate telemetry sensor including signal strength and voltage.
  9. High channel resolution reaches 4096,0.25us per resolution let all the servos keep tranquil.
  10. Support extended engine voltage telemetry module PRM-01 can feedback GPS info, Speed, voltage etc. on AT10II display when work with flight controller APM or PIX.
  11. Strong anti-jumping,DSSS(Direct sequence spread spectrum) technology.

Radiolink AT10II Transmitter Description

  • Frequency: 2.4GHz ISM band(2400MHz to 2485MHz)
  • Modulation Mode: QPSK
  • Channel Bandwidth: 5.0MHz
  • Spread Spectrum: DSSS,FHSS
  • Adjacent Channel Rejection: >38dBM
  • Transmitter Power: <100mW(PCB testing),<20dBm(3 meter air testing)
  • Operating Current: <95mA
  • Operating Voltage: 8.6~15V
  • Control Distance: 800 meters ground
  • Channel: 10 Channel
  • Simulator Mode: Under the simulator model the transmitter action turn off, change to power saving model
  • Screen: 16 colorful screen 320*480 pixel
  • Compatible Model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider, five flying model.
  • Size: 18 x 9.5 x 22cm
  • Weight: 0.95kg

Package Included

  • 1 x Radiolink AT10II
  • 1 x PRM-01 module
  • 1 x Receiver

Last Updated Radiolink AT10II price:$129.99
