Transmitter & Receiver

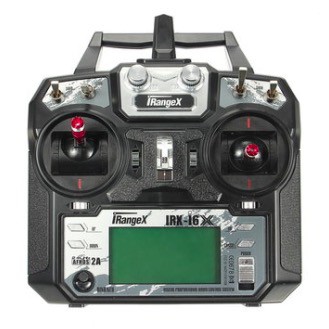

iRangeX iRX-i6X RC Transmitter With A8S Receiver

iRangeX iRX-i6X 2.4GHz 10CH AFHDS 2A RC Transmitter With A8S Receiver

iRangeX iRX-i6X RC Transmitter Features

  1. Capable of sending and receiving data, each transmitter is capable of receiving data from temperature, altitude and many other types of sensors, servo calibration and i-BUS Support.
  2. The AFHDS 2A (Automatic Frequency Hopping Digital System Second Generation) developed and petented is specialy developed for all radio control models. Offering superior protection against interference while maintaining lower power consumption and high reliable receiver senstivity, AFHDS technology is considered to be one of the leaders in the RC market today.
  3. This system bandwidth ranges from 2.408GHz to 2.475GHz. This is divided in 135 channels.
  4. Each transmitter hops between 16 channels (32 for Japanese and Korean version) in order to reduce interference from other transmitters.
  5. The high efficiency Omni-directional high gain antenna cuts down o interference, while using less power and maintaining a strong reliable connection.
  6. The system is built using highly sensitive low power consumption components, maintaining high receiver sensitivity, while consuming as little as one tenth the power of a standard FM system, dramatically extending battery life.
  7. Each transmitter and receiver has it’s own unique ID. Once the transmitter and receiver have been paired, they will only communicate with each other, preventing other systems accidentally connecting to or interfering with the systems operation.

iRangeX iRX-i6X RC Transmitter Description

  • Channel: 6-10 (Default 6)
  • Bandwidth: 500KHz
  • 2.4GHz System: AFHDS 2A / AFDHS
  • RF Channel: 135
  • RF Power: < 20dBm
  • RF Range: 2.408-2.475GHz
  • Stick Resolution 4096
  • Modulation Type: GFSK
  • DSC port: PS/2 Port PPM
  • Chargeable: No
  • Low Voltage Warning: < 4.2V
  • Power: 6V DC 1.5AA*4
  • Antenna Length: 26mm (Dual Antenna)
  • Model Type: Fixed-Wing/Glider/Helicopter
  • On-line Update: Yes
  • Color: Black
  • Size: 174x89x190mm
  • Certificate: CE0678, FCC ID: N4ZFLYSKYI6X
  • Display: STNTransflective Display, LCD 128×64 Lattice, VA 73x39mm, LCD with white backlight

Last Updated iRangeX iRX-i6X price:$42.99
