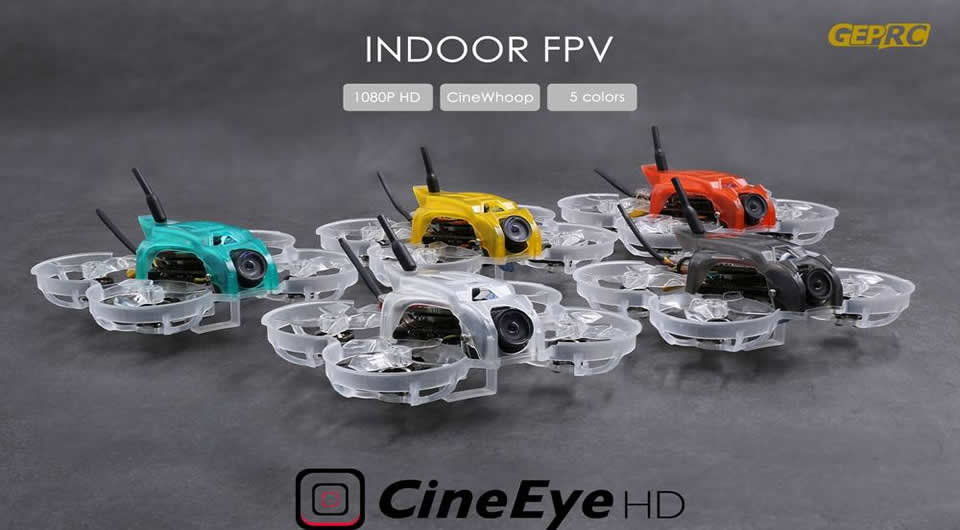

GEPRC CineEye HD FPV Racing Drone

GEPRC CineEye HD Specs

Brand: GEPRC
Item Name: CineEye
Weight: 50g (Without Receiver & Battery)
Wheelbase: 79mm
Version: BNF
Color: Transparent
Receiver: Frsky XM+

Flight Control:
Model: GEP-12A-F4
IMU: MPU6000 gyro/accelerometer (SPI)
MCU: STM32F411
Baro: NO
OSD: BetaFlight OSD w/ AT7456E chip
Integrated LC Filter
BEC Output: 5V@1A
ESC MCU: BB21F16G
Firmware Target: MATEKF411
Input: 2-4s lipo
Continuous Current: 12A
Current Meter: 210
Supports Dshot600,Oneshot,Multishot
Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
Target: G_H_30
Installing Hole: 25.5×25.5mm,M2
Weight: 5.6g

VTX:
Output Power: 25/100/200mw switchable
Integrated LC Filter
Frequency: 5.8GHz 5bands 40 channels
Antenna Interface: IPEX (UFL)
Telemetry: IRC Tramp
Weight: 3g

Motor
Model: GR-1102
KV: 10000KV
Configu-ration: 9N 12P
Stator Diamter: 11mm
Stator Length: 2mm
No.of Cells(Lipo): 2-3S Lipo
Weight: 2.5g

Camera
Model: Caddx Turtle V2
Image Sensor: 1/2.7″ CMOS sensor
Horizontal: 800TVL
TV System: NTSC/PAL changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155°
Recording FOV: 170°
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter: PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

GEPRC CineEye HD Price

Geekbuying Price:$159.99

GEPRC CineEye HD 79mm 2-3S CineWhoop Indoor FPV Racing Drone With F4 12A 200mW VTX Caddx Turtle V2 Cam BNF - Frsky XM+ Receiver

$159.99 $234.99
GEPRC CineEye HD FPV Racing Drone
GEPRC CineEye HD FPV Racing Drone
$159.99 $234.99
