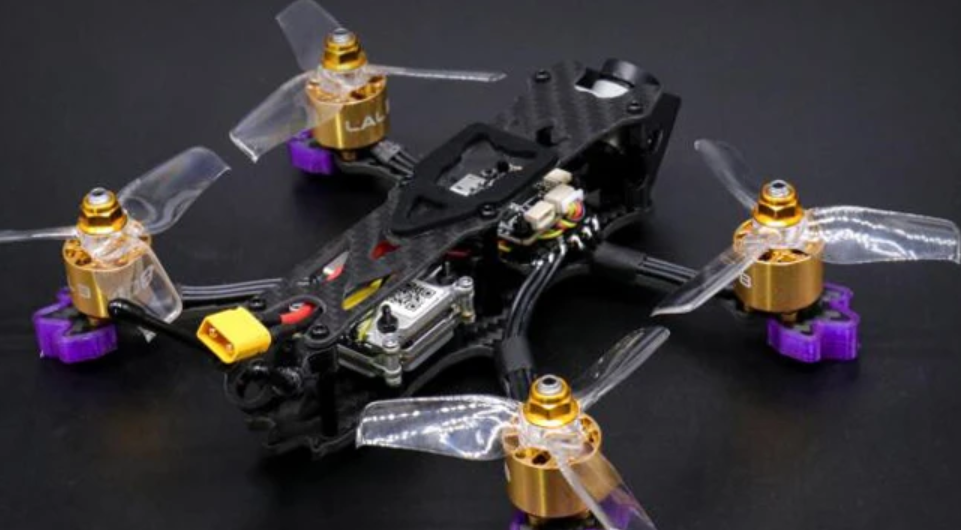

Eachine LAL3 Racing Drone

Eachine LAL3 Racing Drone
Specification:
Brand name: Eachine
Item name: LAL3 HD 3 Inch 3-4S FPV Racing Drone w/ CADDX VISTA

Frame Kit

Wheelbase: 145mm
Bottom plate: 3mm
Upper plate: 2mm

Motor

Mode: 1408
KV: 3750
Idle current (IO/10V): 0.6A
No.of Cells(Lipo): 3-4S
Peak current: 23A
Max. power: 386.4W
Max. thrust: 600g
Configu-ration:12N14P
Internal Resistance: 0.0495Ω
Stator diameter: 14mm
Stator thickness: 8mm
Height: 29.5mm
Width: φ20mm
Shaft diameter: φ5mm
Motor mount hole size: M2
Install hole distance: 12*12mm
Recommend propeller: 2-3 Inch
Weight: 17g

ESC
25A 3-4S Blheli_32 DSHOT1200 4 IN 1 ESC
Continue current: 25A
Burst current: 30A (10s)
Input voltage: 3-4S
BEC: NO
Current sensor: NO
Main control chip: STM32F051
Firmware: Blheli_32
Support DSHOT 150/300/600/1200/MULTISHOT/PWM/ONESHOT
Weight: 3.8g
Installation hole: 20x20mm/φ2
Dimension: 31*29mm

Flight Controller
LAL3-F411 Flight Controller
Main control chip: stm32f411
IMU: mpu6000 6-axis sensor
BEC: 5v / 1a
Integrated OSD
PPM / DSM / IBUS / UAR sharing: UART1-RX
Installation size: 20 * 20
Weight: 3.0g
Supported firmware: betaflight / cleanflight / inav
Supports programmable LED Sprit
Reserved buzzer interface

Camera & VTX

Item Name: Caddx Vista Kit
Operating Frequency: 5.725-5.850GHz
Transmitter Power(EIRP): FCC/SRRC/MIC: <30dBm, CE: <14dBm
Min. Latency (end-to-end): Low Latency Mode(720p 120fps): 21-28ms, High Quality Mode(720p 60fps): 30-40ms
Max. Transmission Distance: FCC/SRRC: 4km, CE: 0.7km
I/O Interface: USB-C,IPEX,3-in-1 Port,microSD card slot
Supported Flight Control System: F3,F4,F7
Operating Temperature Range: 32° to 104° F (0℃ ~40℃)
Input Power: 7.4-26.4V

DJI Camera Specifications:
Sensor: 1/3.2” CMOS
Effective Pixels: 4M
Lens: 2.1mm,f/2.1
Shutter: Rolling shutter
ISO: 100-25600
FOV: 150° (D);122° (H);93° (V)
Propeller
Racerstar 3040 3-blade
Meterial: PC
Blade: 3
Color: Transparent
Center thickness: 5.5mm
Center hole inner diameter: 5mm
Weight: 1.8g/pc

Eachine LAL3 HD 145mm 3 Inch 3-4S FPV Racing Drone PNP CADDX VISTA DJI F4 FC 1408 3750KV Motor 25A ESC

$289.99
Eachine LAL3 Racing Drone
Eachine LAL3 Racing Drone
$289.99

Only US$289.99, buy best eachine lal3 hd 145mm 3 inch 3-4s fpv racing drone pnp caddx vista dji f4 fc 1408 3750kv motor 25a esc sale online store at wholesale price.
