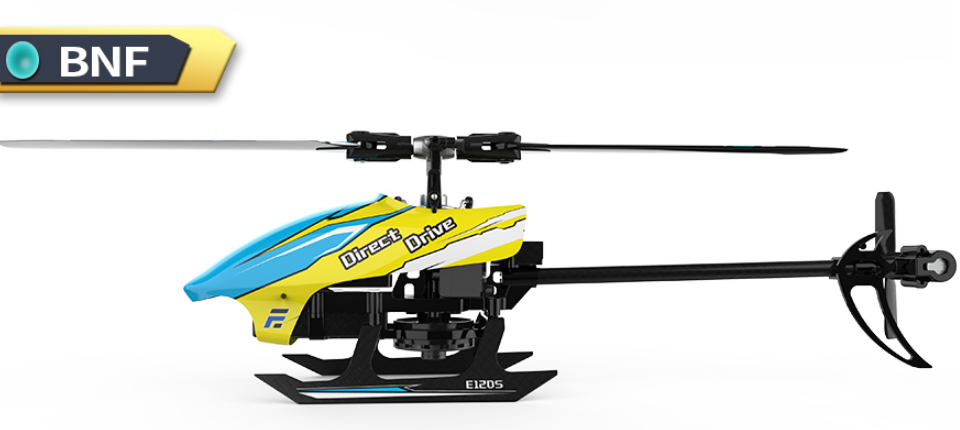

Eachine E120S 2.4G 6CH 3D6G System Brushless RC Helicopter

Specification:
Brand: Eachine
Item: E120S
Product size (cm):
Rotor diameter:290mm
Body length: 265mm
Height:88mm
Weight:115g
Radio Frequency Band: 2.4GHz
Remote control distance (m): more than 120 meters
Battery:LI-POLY 7.4V(500MAH) 30C
Charging time: about 90 minutes
Use time: 5-8 minutes
Violent 3D flight: 3-4 minutes

Function Description:
1>The smallest and most compact micro-helicopter currently on the market; it adopts flybarless design, direct drive of the main motor, electronic stabilization system, more accurate feel, more stable flight, and optimized structure to reduce the probability of damage.
2>The propeller is designed with aerodynamic principles, providing strong power and self-stability of the body. It has high efficiency, power saving and long flight time. The blade is made of nylon + carbon fiber composite material, which has high strength, good toughness, impact resistance, no deformation and durable.
3> Use 2405 brushless motor for direct drive to reduce gear agitation, with low noise, large torque, sufficient power, and high efficiency.
4> The lock tail motor uses a special 8520 hollow cup motor, which has high temperature resistance.
5> Using 2g metal digital steering gear, high torque, high precision, and accurate return to the center, the response speed of 60°/0.05ms makes the aircraft fly accurately, with good feel and longer life.
6> Using 6-axis gyroscope. It has a stable, fast and precise flight attitude, especially suitable for beginners to fly.
7> Adopt 2.4GHZ communication protocol, expandable satellites receiver Support DSMX DSM2 PPM S-BUS standard.
8> Rotor head Rotor clip Swashplate Optimize the structure, reduce the weight, and greatly reduce the probability of aircraft damage.
9> Landing gear The main frame is made of PA12 carbon fiber composite material, which has the characteristics of high strength, high toughness, non-deformation and impact resistance, ensuring the flight accuracy and durability of the whole aircraft.
10> The block design reduces the user’s cost of use while ensuring the structural strength. It has the characteristics of high strength and easy maintenance.
11> Standard six-channel remote control, with LCD screen, battery prompt, digital parameter adjustment, simulator function, optimized joystick output, more precise operation.
12> Professional customized high rate lithium polymer 7.4V 500mah 30C battery, high discharge rate, long service life, flight time of about 5-8 minutes, normal use can reach 500+ cycles.
13> Dedicated USB 7.4V lithium battery charger with charge balance and charge stability function.
14> The horizontal axis is thicker than similar products in the market, which increases the crash resistance and prolongs the service life.

Helicopter Munual: Click Here

BNF Version Package included:
1 x E120S RC Helicopter
1 x USB Charger
1 xBattery(1,2 or 3 pcs, optional)
1 x Tail Blade
2 x Main Blades
2 x Hexagons
1 x Screwdriver
2 x User Manuals

RTF Version Package included:
1 x E120S RC Helicopter
1 x Transmitter
1 x USB Charger
1 xBattery(1,2 or 3 pcs, optional)
1 x Tail Blade
2 x Main Blades
2 x Hexagons
1 x Screwdriver
2 x User Manuals
