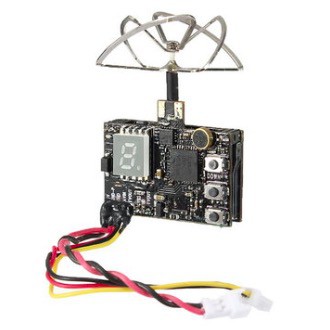

Eachine DTX03 DVR 5.8G 72CH FPV Transmitter

Eachine DTX03 DVR 5.8G 72CH 0/25mW/50mW/200mW Switchable VTX w/ Audio NTSC/PAL

Eachine DTX03 FPV Transmitter Features

  • With digital display,all by your control
  • With DVR function, images can be acquired and recorded in real time
  • Ultra-frequency,72CH give you unlimited space
  • Unique storage memory function, super audio processing technology,a key to playback
  • 0 / 25mw / 50mw / 200mw switchable

Eachine DTX03 FPV Transmitter Specifications

  • Input voltage: 3.2-5.5V
  • Output power: 0/25mW/50mW/200mW switchable
  • Micro SD Card: Max 32GB (CLASS 10)
  • Current consumption: 630mA-390mA(25mW)/750mA-450mA(50mW)/970mA-550mA(200mW)
  • Video format: AVI
  • Video system: NTSC/PAL
  • Output impedance: 55Ω
  • Output signal strength: 14 ± 1db
  • Audio carrier: 10KΩ
  • Audio carrier level: -28- -30dBc
  • Antenna: 4 lobe right hand circular polarized
  • Antenna dimensions: 22mm X 29mm diameter
  • Frequency: 5.8GHz 9 bands 72 channels, with Raceband: 5325-5945 MHZ
  • Operating temperature: -10 – 60 degrees C
  • Size: 28*18.04mm(L*W)
  • Weight: 6.97g
